10.8 V 二段變速螺絲起子

M26304238/ SDEA1080V

可選擇搭配電池容量與充電器以及包裝方式

分享此項產品：

產品特性表

型號	M26304238/ SDEA1080V
電壓	10.8 V
空載轉速	(L) 0~360 r.p.m
空載轉速	(H) 0~1550 r.p.m
扭力	245 kg-cm/24 N-m/17.6 ft-lb
輸出軸規格/扭力調整	1/4"
離合器段數	10 sections + 1 drill
馬達	2 Pole Motor
尺寸	L140 x W54 x H193 mm (Battery included)
重量	0.83 kgs (Battery included)

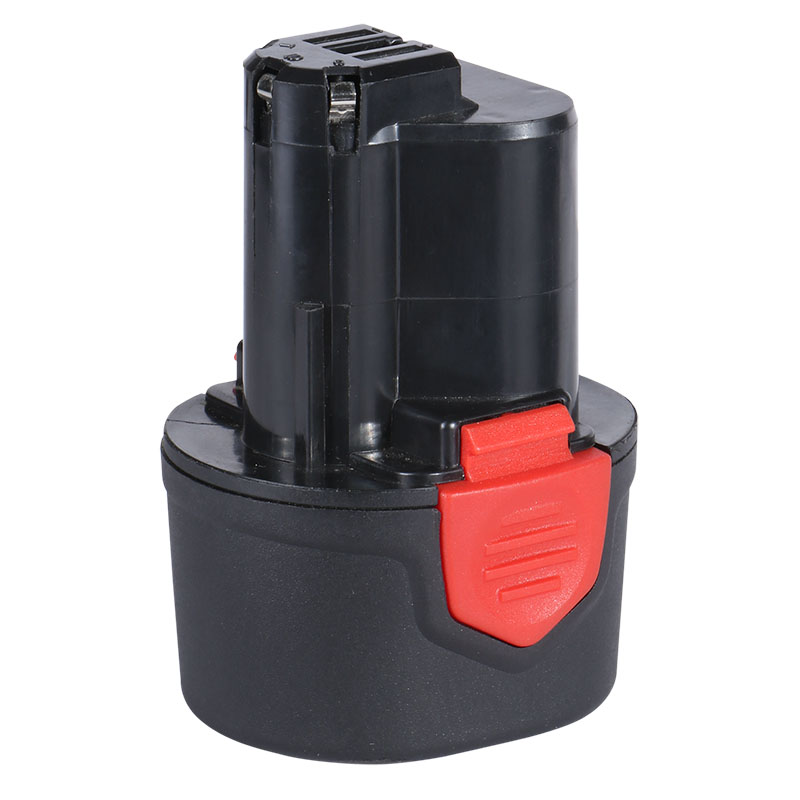

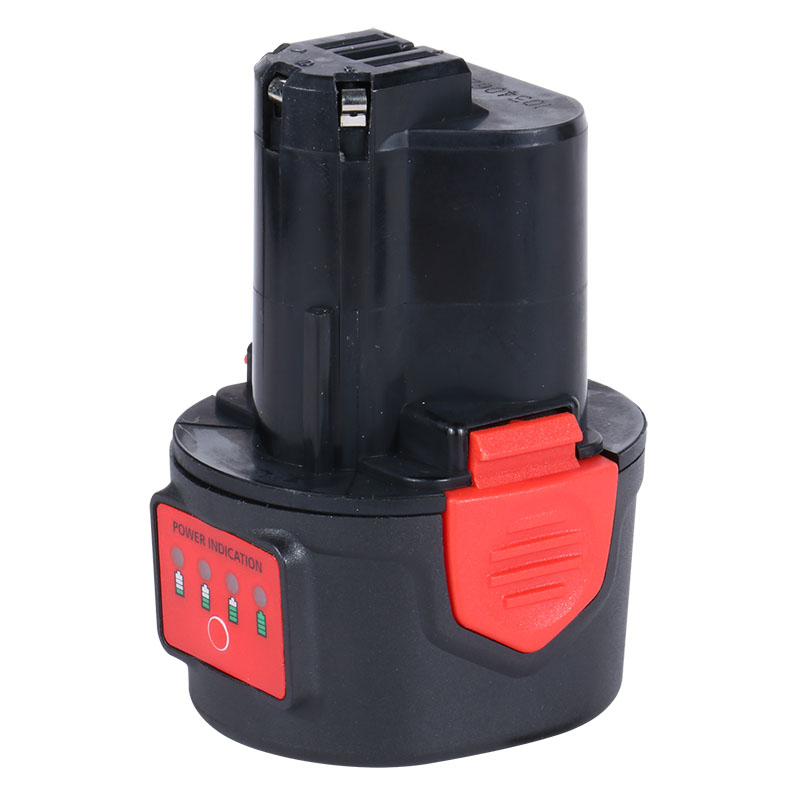

適用電池	B30313815 B30313820 B30313825 B30313830 B30413815 B30413820 B30413825 B30413830

電池與充電器組合配對表

10.8 V	C1033038 C1039038	C1034358 C1039358	C1081358	C1141358	C1211038
B30313815 1500mAh	80%:45min 100%:60min	80%:25min 100%:30min	80%:25min 100%:30min	80%:25min 100%:30min	80%:min 100%:100min
B30313820 2000mAh	80%:55min 100%:70min	80%:35min 100%:40min	80%:35min 100%:40min	80%:35min 100%:40min	80%:min 100%:135min
B30313825 2500mAh	80%:75min 100%:85min	80%:45min 100%:55min	80%:40min 100%:53min	80%:40min 100%:53min	80%:min 100%:170min
B30313830 3000mAh	80%:95min 100%:105min	80%:55min 100%:70min	80%:48min 100%:60min	80%:45min 100%:65min	80%:min 100%:215min
B30413815 1500mAh	80%:45min 100%:60min	80%:25min 100%:30min	80%:25min 100%:30min	80%:25min 100%:30min	80%:min 100%:100min
B30413820 2000mAh	80%:55min 100%:70min	80%:35min 100%:40min	80%:35min 100%:40min	80%:35min 100%:40min	80%:min 100%:135min
B30413825 2500mAh	80%:75min 100%:85min	80%:45min 100%:55min	80%:40min 100%:53min	80%:40min 100%:53min	80%:min 100%:170min
B30413830 3000mAh	80%:95min 100%:105min	80%:55min 100%:70min	80%:48min 100%:60min	80%:45min 100%:65min	80%:min 100%:215min
