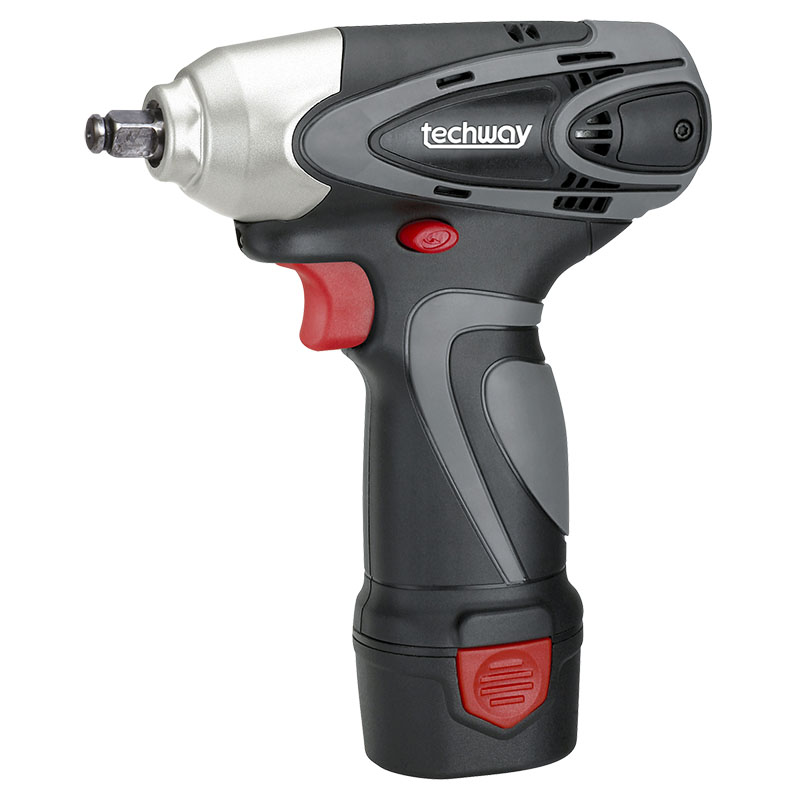

10.8V Cordless impact wrench 3/8"

M26803238 / IWVB1083V

Optional with battery capacity and charger and packaging

SHARE THIS PRODUCT：

Property sheet

MODEL NO.	M26803238 / IWVB1083V
VOLTAGE.	10.8V
NOLOADSPEED.	0~2400 r.p.m
TORQUE.	1050kg-cm/103 N-m/76 ft-lb
CAPACITY.	3/8"
IMPACTS PER MINUTE.	0~3200
MOTOR.	2 Pole Motor
SIZE.	L160 x W54 x H192 mm (Battery included)
WEIGHT.	1.0 kgs (Battery included)
Applicable battery.	B30313815 B30313820 B30313825 B30313830 B30413815 B30413820 B30413825 B30413830

Battery and charger combination pairing table

10.8V	C1033038 C1039038	C1034358 C1039358	C1081358	C1141358	C1211038
B30513830 3000mAh	80%:95min 100%:105min	80%:55min 100%:70min	80%:48min 100%:60min	80%:45min 100%:65min	80%:min 100%:215min
B30513825 2500mAh	80%:75min 100%:85min	80%:45min 100%:55min	80%:40min 100%:53min	80%:40min 100%:53min	80%:min 100%:170min
B30513820 2000mAh	80%:55min 100%:70min	80%:35min 100%:40min	80%:35min 100%:40min	80%:35min 100%:40min	80%:min 100%:135min
B30513815 1500mAh	80%:45min 100%:60min	80%:25min 100%:30min	80%:25min 100%:30min	80%:25min 100%:30min	80%:min 100%:100min
B30313825 2500mAh	80%:75min 100%:85min	80%:45min 100%:55min	80%:40min 100%:53min	80%:40min 100%:53min	80%:min 100%:170min
B30313830 3000mAh	80%:95min 100%:105min	80%:55min 100%:70min	80%:48min 100%:60min	80%:45min 100%:65min	80%:min 100%:215min
B30313815 1500mAh	80%:45min 100%:60min	80%:25min 100%:30min	80%:25min 100%:30min	80%:25min 100%:30min	80%:min 100%:100min
B30313820 2000mAh	80%:55min 100%:70min	80%:35min 100%:40min	80%:35min 100%:40min	80%:35min 100%:40min	80%:min 100%:135min
B30413830 3000mAh	80%:95min 100%:105min	80%:55min 100%:70min	80%:48min 100%:60min	80%:45min 100%:65min	80%:min 100%:215min
B30413825 2500mAh	80%:75min 100%:85min	80%:45min 100%:55min	80%:40min 100%:53min	80%:40min 100%:53min	80%:min 100%:170min
B30413820 2000mAh	80%:55min 100%:70min	80%:35min 100%:40min	80%:35min 100%:40min	80%:35min 100%:40min	80%:min 100%:135min
B30413815 1500mAh	80%:45min 100%:60min	80%:25min 100%:30min	80%:25min 100%:30min	80%:25min 100%:30min	80%:min 100%:100min
