TECHWAY INDUSTRIAL CO., LTD

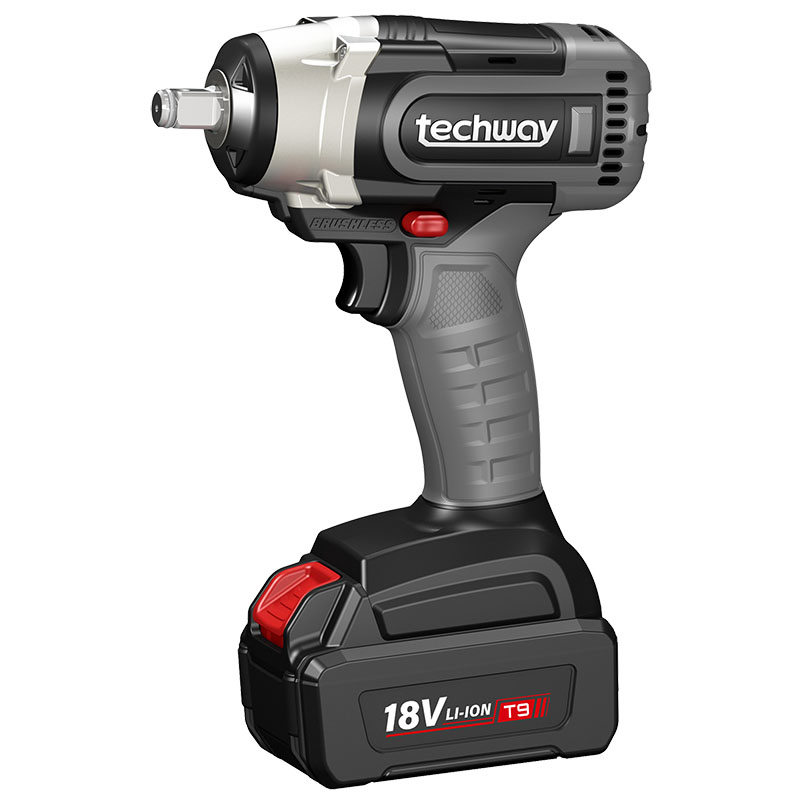

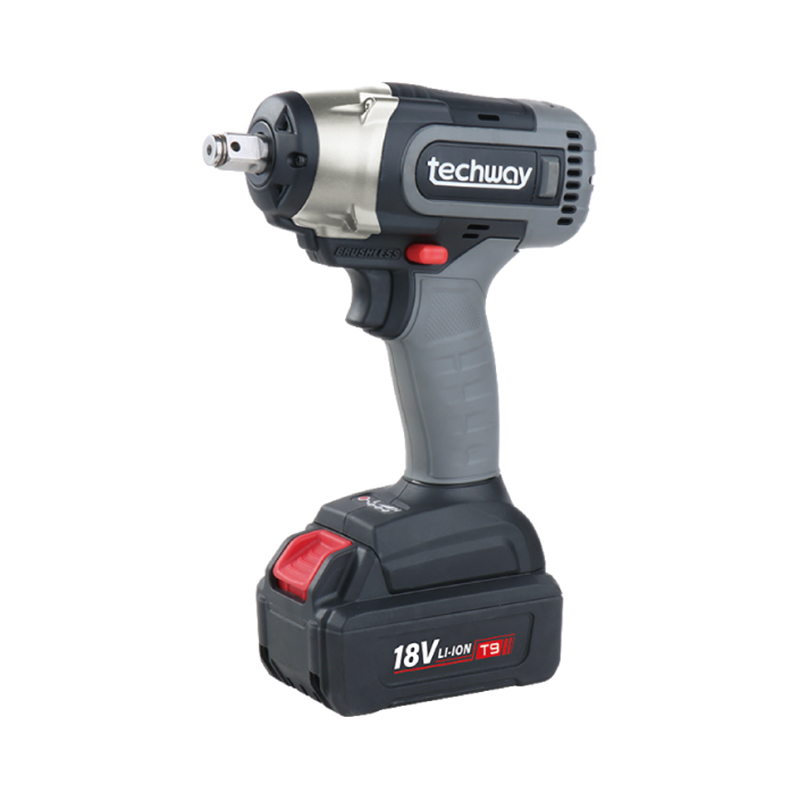

18.0 V Cordless impact wrench 1/2"

T96805258 / IWXI1804C

Optional with battery capacity and charger and packaging

SHARE THIS PRODUCT：

Property sheet

MODEL NO.	T96805258 / IWXI1804C
VOLTAGE.	18.0 V
NOLOADSPEED.	0~2400 r.p.m
TORQUE CONTROL.	4 TORQUE SECTIONS
TORQUE RANGE FORWARD 1st.	357kg-cm/35 N-m/26 ft-lb
TORQUE RANGE FORWARD 2nd.	1020kg-cm/100 N-m/74 ft-lb
TORQUE RANGE FORWARD 3rd.	1550kg-cm/152 N-m/113 ft-lb
TORQUE RANGE FORWARD 4th.	5500kg-cm/539 N-m/396 ft-lb
CAPACITY.	1/2"
IMPACTS PER MINUTE.	0~3200
MOTOR.	Brushless Motor
SIZE.	L170x W78 x H257 mm (Battery included)
WEIGHT.	2.22 kgs (Battery included)
Applicable battery.	B31615830 B31615840 B31615850 B31615860 B31715820 B31715825 B31715830

Battery and charger combination pairing table

18.0 V	C1037358 C1191358	C1161358	C1171358 C1201358	C1241058
B31715820 2000mAh	80%:45min 100%:50min	80%:35min 100%:40min	80%:19min 100%:27min	80%:min 100%:70min
B31715825 2500mAh	80%:60min 100%:65min	80%:40min 100%:53min	80%:25min 100%:37min	80%:min 100%:90min
B31715830 3000mAh	80%:75min 100%:80min	80%:45min 100%:60min	80%:31min 100%:43min	80%:min 100%:110min
B31615830 3000mAh	80%:75min 100%:80min	80%:45min 100%:60min	80%:31min 100%:43min	80%:min 100%:110min
B31615840 4000mAh	80%:95min 100%:100min	80%:65min 100%:80min	80%:41min 100%:53min	80%:min 100%:130min
B31615850 5000mAh	80%:125min 100%:135min	80%:85min 100%:100min	80%:51min 100%:65min	80%:min 100%:165min
B31615860 6000mAh	80%:155min 100%:165min	80%:105min 100%:120min	80%:61min 100%:78min	80%:min 100%:205min
